MB-A670-A 12th/13th/14th Intel? Core ? Processor ATX

? 支持Intel 12/13/14代Core i3/i5/i7/i9處理器 ? 采用Intel Q670芯片組 ? 支持2 X Intel千兆網口, 8 X USB 3.0, 5 X USB 2.0, 6 X COM ? 提供1 X VGA, 1 X HDMI, 1 X DVI, 1 X EDP ? 支持2 X PCIe x16, 4 X PCIe x4, 1 X PCI ? 支持vPro, AMT, RAID, TPM 2.0, Case Open

咨詢熱線：

400-0086-772

產品描述

產品描述
1
2
3

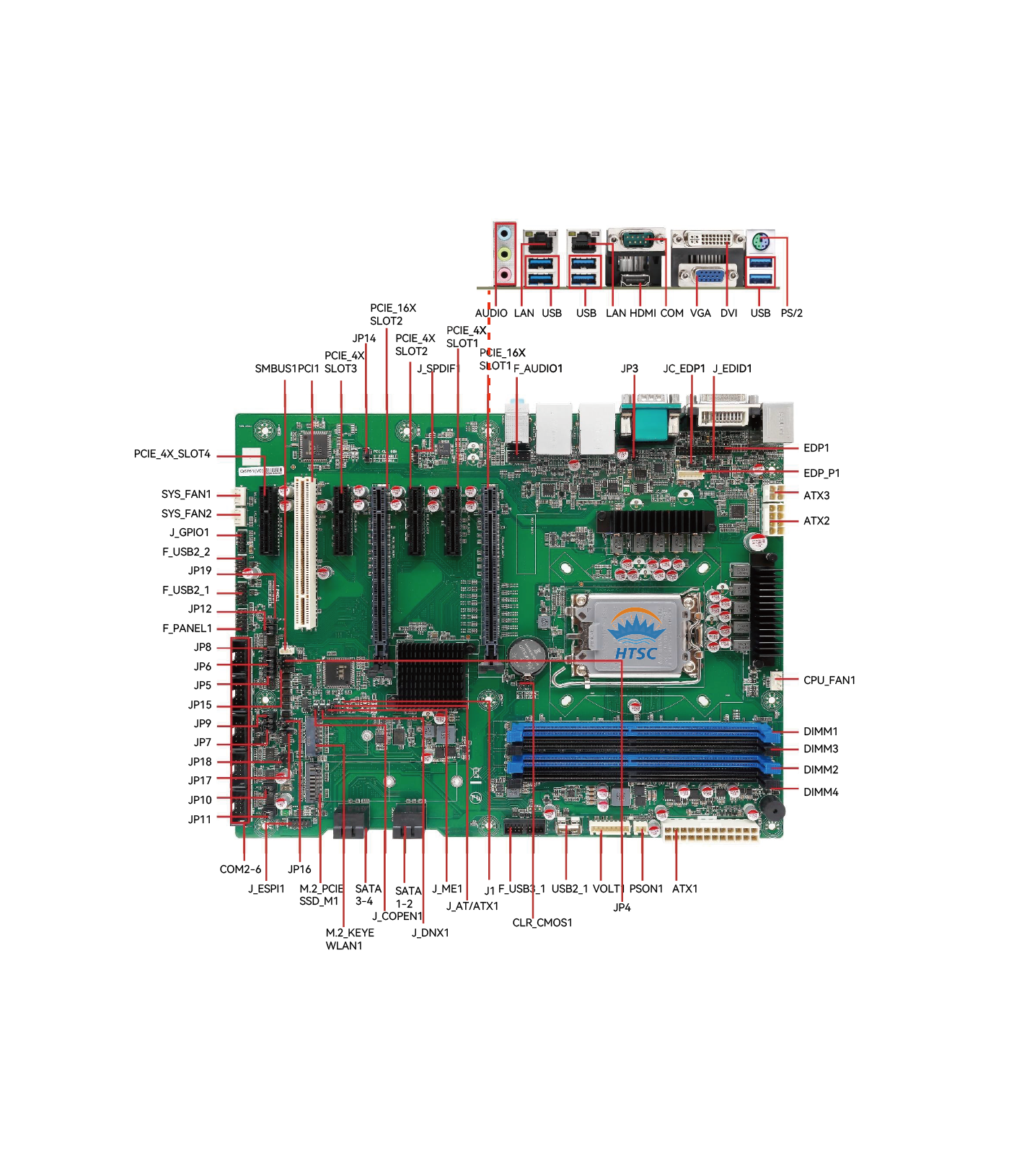

商品名稱: MB-A670-A 12th/13th/14th Intel? Core ? Processor ATX

規格

General
CPU	Intel® 12/13/14th Generation Core /Pentium /Celeron CPU , LGA1700 , Support MAX CPU TDP 125W
芯片組	InIntel® Q670
內存	4 X DDR4 2133/2400/2666/2933/3200MHz UDIMM , Up to 128GB
硬盤	4 X SATA 3.0 , RAID 0/1/5/10 , 1 X M.2 2242/2280 M key (NVMe/SATA)
擴展槽	2 X PCIe X16 (PCIe 1 x16X or 2 x8X, GEN4) 3 X PCIe X4 (PCIe 4X, GEN4) 1 X PCIe X4 (PCIe 4X, GEN3),1 X PCI 1 X M.2 2230 E key (PCIe/USB2.0/CNVi/WIFI/BlueTooth)
BIOS	AMI UEFI BIOS
系統	Windows 10/11,Linux

I/O 接口
以太網	2 X Intel GBE LAN (10/100/1000 Mbps, RJ45)
串口	1 × RS232 (COM1 , Rear IO) 3 × RS232 (COM2/5/6 , Header) 1 × RS232/RS422/RS485 (COM3 , Header) 1 × RS232/RS485 (COM4 , Header)
USB	6 × USB3.0 (TYPE-A , Rear IO) 2 × USB3.0 (Header) 1 × USB2.0 (TYPE-A) 4 × USB2.0 (Header)
音頻	Realtek Audio HDA Codec , Support MIC-IN/LINE-IN/LINE-OUT
PS/2	1 × PS/2 (Keyboard & Mouse)
并口	---
Parallel Port	1 X 8-bit GPIO

顯示

顯示界面

1 × VGA , up to 1920x1200@60Hz
1 × HDMI , to 4096x2160@30Hz
1 × DVI , up to 1920x1200 @ 60Hz

1 X EDP , up to 4096x2304@60Hz

機械和環境
尺寸	305 X 244mm
電源	ATX (24P+8P+4P)
相對溫度	Operation: 0℃~60℃, Storage: -25℃~75℃
相對濕度	Operation: 10%~90%, Storage: 5%~95%, non-condensing
